HiFIX

Device interface

The HiFIX lineup delivers clean waveform transmission, precision docking, and multi-DUT parallel test, with high reliability.

Along with technology for pico second clean waveform transmission, HiFIX requirements include precision docking and high reliability. Advantest's versatile HiFIX product lineup offers support for requirements including memory, wafer, and manual test. This variety allows us to provide solutions optimized to specific test frequencies and device packages.

To ensure maximum quality of performance, all functions of the HiFIX, including continuity and AC/DC checks, are performed throughout the manufacturing process.

Manual HiFIX

This HiFIX is for manual hand test. It is mainly for use in R&D applications, as in evaluation of devices under development. Its specifications can be tailored to the requirements of the customer. This low-cost, reliable product leverages many years of accumulated knowledge and experience at Advantest.

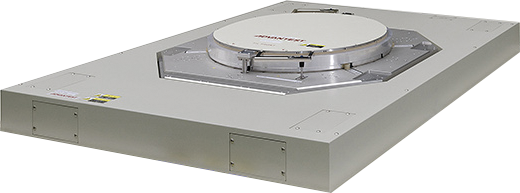

Wafer HiFIX

This HiFIX supports wafer probers from a variety of companies. Its specifications can be tailored to customer requirements.

Wafer motherboard

Final Test HiFIX

Using a high-performance coaxial connector developed by Advantest, it allows DUTs to be swapped out by replacing only the socket board. This mechanism facilitates test of high-speed devices, and also leads to reduced cost of test. The SBC-TYPE HiFIX boasts improved transmission performance, and it entails lower costs when swapping devices.

Final Test HiFIX (DSA)
Final Test HiFIX (Motherboard)

Power Regulation Module (PRM)

PRM is a compact module that stabilizes power supply voltage fluctuation. By placing the PRM near the Device, improve the load regulation of the power supply.

PRM location
Power Regulation Module

PRM Specification

Can be swiped left or right.
PARAMETER Specification
Output Voltage +0.45~+1.50V
Output Current 0A~4A 0A~5A
Output Voltage accuracy DPS Voltage accuracy ±5mV
Leakage Current ±15µA
Load Regulation ±10mV[typical]
Supply voltage ran VCC: +4.5 to +5.0V
VEE: -4.5 to -5.0V
Power consumption Load Currents 4A : 961mW max
No load : 161mW max
Load Currents 5A :1,161mW max
No load : 161mW max
Operating temperature -40℃~+125℃ -40℃~+110℃
Size 10mm × 19mm × 5mm
