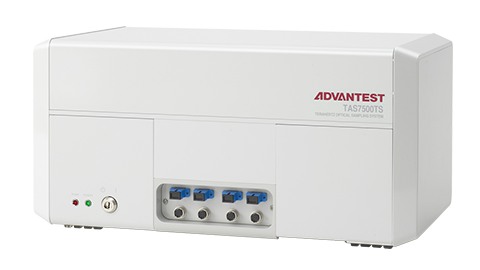

The TAS7500TS is a Terahertz (THz) analysis system consisting of an optical fiber laser module and a data acquisition module, which are core parts of our terahertz spectroscopy system (TAS7500SP). Users complete the THz measurement system setup by simply connecting one of Advantest's THz source modules (TAS1110/TAS1130) and a detector module (TAS1230; sources and detectors sold separately). Flexible source selection and source/detector placement allows the user to generate customized experimental configurations.
Supports a wide range of terahertz research and applications
-
Super-high-speed terahertz optical sampling measurement (1msec/scan)
-
Fiber pigtails enable flexible layout of THz source/detector modules and optical sampling system
Features
-
1msec/scan super-high-speed terahertz optical sampling measurement (TAS7500TS)
-
Flexible configuration of THz source/detector modules and optical components
-
Up to 4 meter optical path length
-
Configure with up to 2 different THz source and 2 detector modules (Optional)
-
Low frequency, standard and broadband coverage THz wave detectors
Product Lineup and Applicable Fields
| Field / Product |
TS Covers all TS bands 0.03 to 7 THz
|
SL Low-frequency spectroscopy 0.03 to 2 THz
|
SP Standard-band spectroscopy 0.1 to 4 THz
|
SU Wide-band spectroscopy 0.5 to 7 THz
|
|
|---|---|---|---|---|---|
| Academic research |
Basic science − Physics, chemistry, medical, physiology |
○ | ○ | ○ | ○ |
| Material |
− Electronical and insulating materials for 5G and 6G − Radio wave absorber |
○ | ○ | – | – |
| Chemical |
− Liquid crystal − Polymer, rubber − Glass, etc. |
○ | – | ○ | ○ |
| Food | − Beverage, alcoholic liquor, flavoring | ○ | – | ○ | ○ |
| Pharmaceutical |
Pill, solid medicine, active pharmaceutical
ingredient − Crystal, hydrate − Density, hardness, tensile strength Biological medicine |
○ | ○ | ○ | ○ |
